Thermocol Sheet Price in Pakistan 2026 (EPS / Thermopore)

Lahore manufacturer of EPS Thermocol / Thermopore sheets. Factory-direct pricing — no middleman markup. All sizes, densities and thicknesses available. Same-day delivery in Lahore for urgent in-stock orders.

Rs.135
Price starts from
Cooler
Indoor temperature with roof insulation
Lower
Cooling & energy load
10–15 yrs
Service life
Thermocol EPS sheet factory price Pakistan

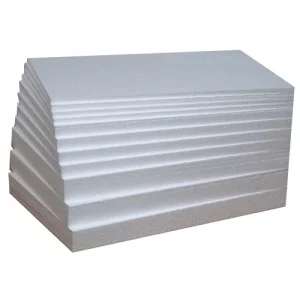

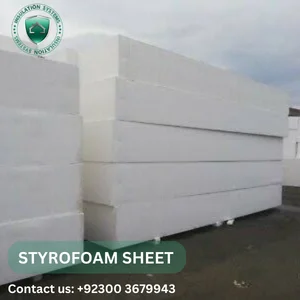

Styrofoam EPS sheets stackWhite thermocol sheets
What is Thermocol Sheet?

What is a thermocol sheet?

Thermocol sheet — also called Thermopore or EPS (Expanded Polystyrene) — is a lightweight rigid foam made of millions of tiny trapped air pockets. It is the most affordable and widely used thermal insulation in Pakistan, from roof heat proofing to cold storage and packaging.

Whether you are a homeowner trying to beat the summer heat or a contractor working on a large cold storage project, Insulation System has the right grade and size at the best factory price.

📍 Factory Location — Lahore
We manufacture directly at Gopi Rai Road, 3 km Katar Band Road, Gopi Rai, Lahore 53700. No middleman — factory-direct pricing with same-day delivery in Lahore for urgent in-stock orders. Large orders need 1 to 2 days of production, and delivery across Pakistan is quoted by city and quantity.
📞 Get Factory Price💬 WhatsApp
Features

Key Features of Thermocol (EPS) Sheets

Why Thermocol sheets are widely used insulation in homes, factories and cold storage facilities.

🌡️

Excellent Thermal Insulation

Very low thermal conductivity (0.033–0.040 W/m·K) — millions of trapped air pockets act as natural insulators, dramatically reducing heat transfer from roof to interior.

💧

Very Low Water Absorption

Closed-cell EPS foam absorbs very little water — prevents dampness, mold, structural damage, and thermal degradation even in Pakistan's monsoon season.

⚖️

Lightweight & Easy to Handle

Extremely light — effortless to transport, cut, and install without additional structural support. Can be cut with a simple blade or hot wire cutter on site.

🔇

Sound Absorption

EPS gives modest sound reduction. For recording studios and strict noise control, use glass wool or rock wool.

💪

High Compressive Strength

Despite being lightweight, EPS sheets have impressive compressive strength (70–200 kPa) — suitable for under-floor, roof, and cavity wall applications.

🔄

Customizable All Sizes

Available in 3×3 ft, 4×4 ft and 8×4 ft sheets with 0.5-inch to 4-inch thickness at densities 10–40 kg/m³. Custom sizes cut to order for any project.

🛡️

Non-Toxic & Safe

Free from harmful substances. Resistant to bacteria and fungi. Safe for food packaging, poultry farms, inhabited spaces, and pharmaceutical cold chains.

🔥

Fire Retardant (FR) Grade

EPS is combustible. Keep it away from flames and heaters, and always cover it (screed, plaster or panel skins). Ask us if a fire-retardant grade is required.

♻️

Eco-Friendly & Recyclable

100% recyclable EPS material. Contributes to energy savings and reduced carbon footprint — supports green building goals.

Factory Rates 2026

Thermocol Sheet Price in Pakistan — 2026

Below are our current factory-direct prices for Thermocol (EPS/Thermopore) sheets. Prices may vary based on quantity, density grade, and delivery location. Bulk order discounts available.

SizeThicknessDensityBest UsePrice (PKR)
3 × 3 ft1 Inch15 kg/m³Small patches, packagingRs. 135–160
4 × 4 ft1 Inch15 kg/m³Ceiling, walls, packagingRs. 240–280
8 × 4 ft1 Inch15 kg/m³Large roofs, wallsRs. 480–550
4 × 4 ft2 Inch20 kg/m³Roof insulationRs. 480–560
8 × 4 ft ⭐2 Inch20 kg/m³Roof insulation (Recommended)Rs. 960–1,100
8 × 4 ft3 Inch25 kg/m³Walls, partitions, general useRs. 1,400–1,600
Custom0.5" – 4"10–40 kg/m³Industrial, cold storage, poultry (30–40 kg/m³)Call for Quote

Indicative factory rates, last reviewed on 8 October 2026. Rates change with fuel and raw-material costs, so please confirm today's rate on WhatsApp +92 300 3679943.

Technical data for the 15 kg/m³ grade, including R-value by thickness and electricity savings at Rs 45 and Rs 60 per unit: EPS 15 kg/m³ technical data.

💡 Pro Tip: For residential roof heat insulation in Pakistan, the 8×4 ft, 2-inch sheet at 20 kg/m³ is the most recommended. It typically reduces indoor temperature by 5–8°C and can lower AC electricity use. These are typical results. Actual savings depend on the building, climate, insulation thickness and use. They are not a guarantee.
📞 Get Bulk Rate
Applications

Where Thermocol Sheets Are Used in Pakistan

🏠

1. Roof Heat Insulation — Most Popular

Thermocol sheets for roof heat insulation are the most popular and cost-effective solution in Pakistan's hot climate. EPS foam creates a thermal barrier that minimizes heat absorption through roofs — keeping interiors cooler and which can typically lower air conditioning costs, depending on roof size, thickness and AC usage.

In cities like Lahore, Multan, and Karachi where summer temperatures exceed 45°C, a 2-inch Thermocol sheet under or over the roof slab is the most affordable single upgrade you can make to your home. Roof surfaces absorb maximum heat — without insulation, indoor temperatures can typically be several degrees hotter than the outside air, depending on roof type and sun exposure.

✅ How it works:
• Trapped air pockets block heat transfer
• Aluminum foil combo reflects solar radiation
• Reduces AC load and electricity bills
• Keeps house warm in winter too
📐 Installation method:
→ Placed under or over roof slab (lenter); on top of the slab, sheets go under a screed and waterproofing
→ Fixed with construction adhesive
→ Joints sealed with foam tape
→ Optional aluminum foil facing
Recommended: 8×4 ft, 2-inch, 20 kg/m³ sheet — Rs. 960–1,100 per sheet

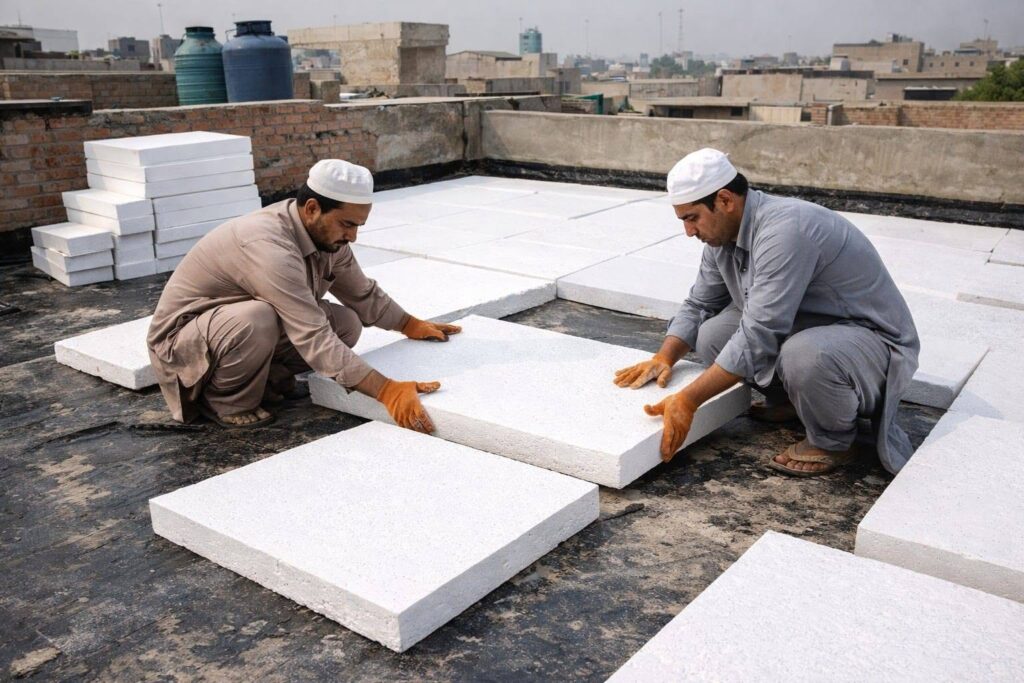

Thermocol sheets for roof insulation
🐔

2. Poultry Farm & Control Shed Insulation

Insulation System supplies high-density Thermocol sheets for poultry farm and control shed insulation across Pakistan. Proper temperature regulation inside poultry sheds (optimal 22–27°C) is critical for bird health, growth rates, and feed conversion — and Thermocol is the most affordable way to achieve it.

Benefits for Poultry Farms:
✓ Maintains 22–27°C — reduces bird mortality and improves productivity
✓ Can lower heating and cooling costs, depending on building and usage
✓ Moisture-resistant — prevents respiratory diseases from dampness
✓ Lightweight panels easy to install on existing shed structure
✓ Durable 10–15+ year service life with no maintenance
Installation on Control Sheds:

Thermocol sheets are attached to the underside of the shed roof using adhesive, then sealed at joints with foam tape or insulation sealant. For maximum performance, cover with a reflective aluminum foil layer. Ensure ventilation openings are maintained for proper air circulation.

Recommended: 2–3 inch thick sheets at 30–40 kg/m³ density for maximum temperature control.
❄️

3. Cold Storage Heat Proofing

Cold storage insulation with Thermocol sheets is essential for maintaining low temperatures efficiently. High-density EPS (30–40 kg/m³) is recommended for cold room applications — provides superior thermal resistance (R-value), reduces compressor load, and prevents condensation on walls and ceilings.

🖌️
1. Surface Prep
Clean and level all surfaces
📐
2. Sheet Placement
Fix to all interior surfaces
🔒
3. Joint Sealing
Cold storage sealant
🪟
4. Cladding
Aluminum or PVC panels
🛡️
5. Vapor Barrier
Prevent condensation
🧱

4. Exterior & Cavity Wall Insulation

An Exterior Wall Insulation System (EWIS) using Thermocol sheets reduces wall heat transfer — dramatically lowering AC and heating costs. Eliminates thermal bridging at structural columns and beams.

✓ Typically reduces wall heat transfer, depending on wall type and thickness
✓ Increases property value and energy rating
✓ Cavity wall — fits between inner and outer masonry
📦

5. Industrial & Commercial Packaging

EPS sheets protect fragile goods, electronics, medical equipment, food products, and machinery from impact and temperature during transit and storage.

✓ Electronics & appliances — shock protection
✓ Food packaging — cold chain perishables
✓ Pharmaceutical — medicines and medical supplies
✓ Industrial parts — custom EPS trays and inserts
Technical Data

Technical Specifications

PropertySpecification
MaterialExpanded Polystyrene (EPS)
Density Range10–40 kg/m³
Thermal Conductivity0.033 – 0.040 W/m·K
Compressive Strength70 – 200 kPa
Water AbsorptionLow water absorption (ASTM C578 limit is 2–4% by volume depending on class)
Operating TemperatureApproximately −50°C to +70°C
Standard Sheet Size4×4 ft, 8×4 ft, custom
Thickness Available0.5", 1", 2", 3", 4"
Fire RatingFR grade available; EPS is combustible
R-Value per inchR-3.5 to R-4.0
Buying Guide

Which Sheet is Right for You?

🏠 Residential Roof (Recommended)
8×4 ft, 2-inch, 20 kg/m³ — Reduces indoor temp by 5–8°C. Price: Rs. 960–1,100 per sheet.
🏢 Commercial Building
8×4 ft, 2–3 inch, 20–30 kg/m³ — Higher density for better performance. Call for bulk pricing.
🐔 Poultry Farm / Shed
2–3 inch, 30–40 kg/m³ with aluminum foil facing for max temp control.
❄️ Cold Storage
3–4 inch, 30–40 kg/m³ high-density for maximum R-value. Custom quote available.
📦 Packaging
1 inch, 10–20 kg/m³ lightweight grade — affordable shock protection.
Why Insulation System

Lahore Thermocol Sheet Manufacturer — 11+ Years of Experience

🏭
Factory-Direct Pricing

We supply directly from our Lahore manufacturing facility. No middlemen — direct manufacturer pricing with same-day dispatch in Lahore.

📐
All Sizes & Densities

From 0.5-inch packaging sheets to 4-inch cold storage slabs. All densities 10–40 kg/m³. Custom sizes cut to order on request.

✅
Made at Our Own Factory

EPS made at our Lahore factory to the density you order.

🚚
Nationwide Delivery

Same-day delivery in Lahore for urgent in-stock orders. Large orders need 1 to 2 days of production before dispatch, plus transit time to your city. Delivery charges depend on the city and quantity. You can also send your own truck to our Lahore factory.

Get Factory-Direct Quote Now

Tell us your roof size, required thickness, and city — we'll give you an exact quote within about 30 minutes. Bulk order discounts for contractors and builders.

✓ Bulk discounts for contractors & builders
✓ Free technical advice on thickness & density
✓ Same-day Lahore delivery for in-stock orders; Pakistan quoted per order
✓ Custom sizes cut to order
📞 +92 300 3679943💬 WhatsApp for Instant Quote✉️ insulationsystems.eps@gmail.com
📍 Gopi Rai Road, 3 km Katar Band Road, Gopi Rai, Lahore 53700 | 🕘 Open 24 hours
Our Work

Thermocol Sheets — Installed & Supplied Across Pakistan

Real roof installations, poultry sheds and truck loads from our Lahore factory.

Thermocol sheets being laid on a roof
Thermocol sheets being laid on a roof
Roof insulation installation
Roof insulation installation

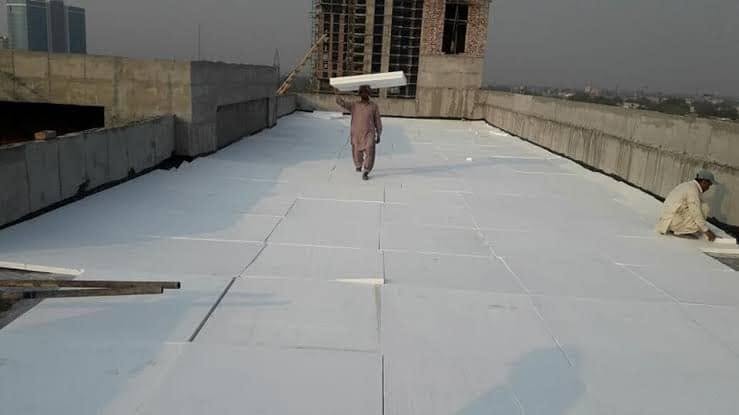

White EPS roof insulation layer
White EPS roof insulation layer
Poultry shed insulation with Thermocol
Poultry shed insulation with Thermocol
Cavity wall insulation with EPS
Cavity wall insulation with EPS

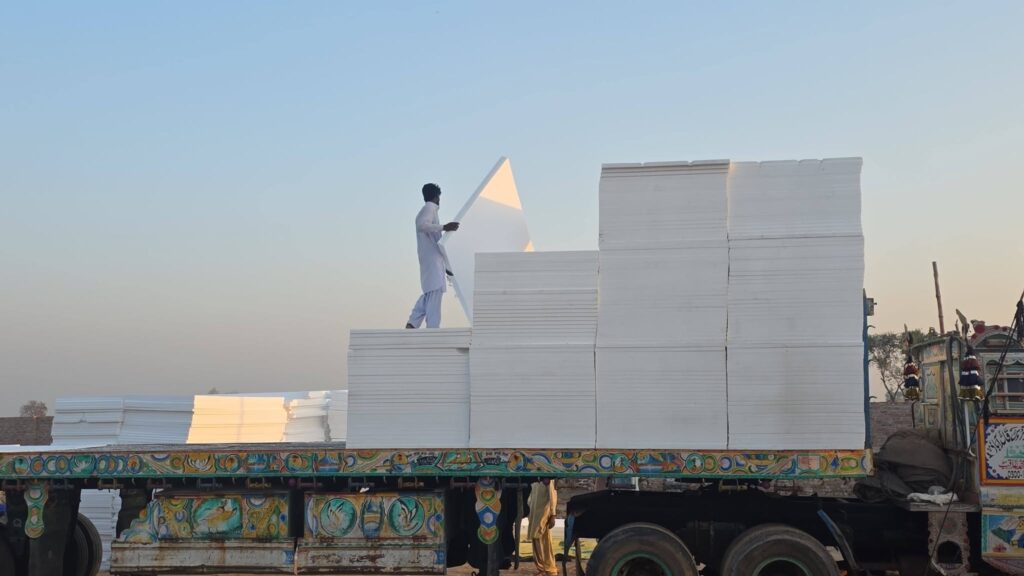

Truck supply of Thermocol sheets
Truck supply of Thermocol sheets
FAQ

Thermocol Sheet — Frequently Asked Questions

What is the price of Thermocol sheet in Pakistan 2026?

Thermocol sheet prices start from Rs. 135 for a 3×3 ft, 1-inch sheet. A 4×4 ft 1-inch sheet is Rs. 240–280, an 8×4 ft 1-inch sheet Rs. 480–550, and the recommended 8×4 ft 2-inch, 20 kg/m³ roof sheet is Rs. 960–1,100. Prices vary with quantity, density, and delivery location — call for the latest factory rate.

What sizes of Thermocol sheets are available in Pakistan?

We supply 3×3 ft, 4×4 ft and 8×4 ft sheets in 0.5, 1, 2, 3 and 4-inch thickness at densities of 10–40 kg/m³. Custom sizes are cut to order.

What is the difference between Thermocol, EPS, Thermopore, and Jumbolon?

Thermocol and Thermopore are EPS (Expanded Polystyrene). Jumbolon and Styrofoam boards are usually XPS (extruded polystyrene), a denser material with higher R-value and better moisture resistance, usually costing more.

Which Thermocol sheet thickness is best for roof insulation in Pakistan?

For most homes, a 2-inch sheet at 20 kg/m³ density (8×4 ft) is the most recommended — it typically reduces indoor temperature by 5–8°C.

Does Thermocol sheet really reduce roof heat in Pakistan?

Yes. EPS has very low thermal conductivity and blocks heat transfer through the roof, reducing indoor temperature by about 5–8°C and AC bills (results vary by building).

Is Thermocol sheet waterproof? Can it be used outdoors?

EPS is closed-cell and has low water absorption (ASTM C578 limits are about 2–4% by volume depending on class), but it is not a waterproofing membrane. For roofs, it should be protected under a screed or covering, and waterproofing should be done separately.

What is density and why does it matter for Thermocol sheets?

Density (kg/m³) is the weight of foam per cubic meter. Higher density means greater compressive strength and better insulation performance — 10–20 kg/m³ suits packaging and light use, 20–30 kg/m³ suits roofs, and 30–40 kg/m³ suits cold storage.

Do you offer bulk rates for contractors and builders?

Yes. We offer bulk order discounts for contractors and builders. Call or WhatsApp us with your quantity for a factory-direct quote.

Do you deliver Thermocol sheets outside Lahore?

Yes. Same-day delivery in Lahore for urgent in-stock orders. Large orders need 1 to 2 days of production before dispatch, plus transit time to your city. Delivery charges depend on the city and quantity. You can also send your own truck to our Lahore factory.

Thermocol sheet ka rate kya hai?

8x4 ft, 2 inch, 20 kg/m3 sheet takreeban Rs 960 se 1,100 hai, yani lagbhag Rs 30 se 34 per sq ft. Latest rate ke liye +92 300 3679943 par WhatsApp karein.

Chat ki heat proofing ka kharcha kitna hota hai?

Thermocol sheet se roof ka sirf material ka kharcha sheet ke rate aur roof ke size par hota hai. 5 marla roof takreeban 1,361 sq ft hota hai, jis ke liye 8x4 ft ki takreeban 43 sheets lagti hain. 960 se 1,100 ke rate par sirf sheets ka kharcha Rs 41,000 se 47,000 ke qareeb banta hai. Installation, screed aur waterproofing alag hain.

Roof ke liye kitni thickness aur density chahiye?

Zyada tar gharon ke liye 2 inch, 20 kg/m3. Jahan log roof par chalte hain wahan 30 se 40 kg/m3.

Thermocol, XPS (Jumbolon) aur PU foam mein kya farq hai?

Thermocol sab se sasta hai. XPS zyada dense hai aur pani se kam asar leta hai. PU foam spray insulation aur waterproofing dono karta hai, magar mehnga hai.

Kya thermocol sheet aag se mehfooz hai?

Aam EPS jalne wala material hai. Isko hamesha screed, plaster ya panel se dhak kar lagayein aur khuli aag se door rakhein. Fire-retardant grade ke liye pehle batayein.

Thermocol sheet kitne saal chalti hai?

Typical service life 10 se 15 saal hai jab wo sahi tarah dhaki ho. Ye warranty nahi, typical umar hai.

Kya aap Lahore ke bahar delivery karte hain?

Haan. Lahore mein urgent in-stock orders same-day jate hain. Bade orders ko dispatch se pehle 1 se 2 din production lagte hain, aur shehar tak transit alag hai. Delivery charges shehar aur quantity par depend karte hain. Aap apna truck bhi hamari Lahore factory bhej sakte hain.

تھرموپور شیٹ کی قیمت کیا ہے؟

8x4 فٹ، 2 انچ، 20 کلوگرام فی مکعب میٹر کی شیٹ تقریباً 960 سے 1,100 روپے کی ہے۔ تازہ ریٹ کے لیے +92 300 3679943 پر واٹس ایپ کریں۔

چھت کی ہیٹ پروفنگ کیسے کی جاتی ہے؟

عام طور پر چھت پر 2 انچ، 20 کلوگرام فی مکعب میٹر کی تھرموکول شیٹ لگائی جاتی ہے، پھر اس پر سکریڈ یا واٹر پروفنگ کی تہہ ڈالی جاتی ہے۔ آپ کی چھت کے سائز کے مطابق ہم شیٹس کی تعداد اور اندازہ لاگت بتا دیتے ہیں۔

Nationwide

Thermocol Sheets Available Across Pakistan

🏙️
Lahore
Factory location — same-day dispatch
🌊
Karachi
Delivery by route — humidity-resistant EPS
🏛️
Islamabad
1–2 days delivery
🏭
Faisalabad
Industrial bulk orders
🌾
Multan
Extreme heat — EPS essential
🕌
Peshawar
Heat and cold protection
🏗️
Sukkur
Delivery available
🚢
Hyderabad
Sindh-wide delivery

Ready to Beat Pakistan's Heat? Order Thermocol Sheets Today!

Factory-direct pricing · All sizes available · Same-day Lahore dispatch · Nationwide delivery quoted by city and quantity.

📞 +92 300 3679943💬 WhatsApp Quote📝 Get Quote

Photos from Our Work

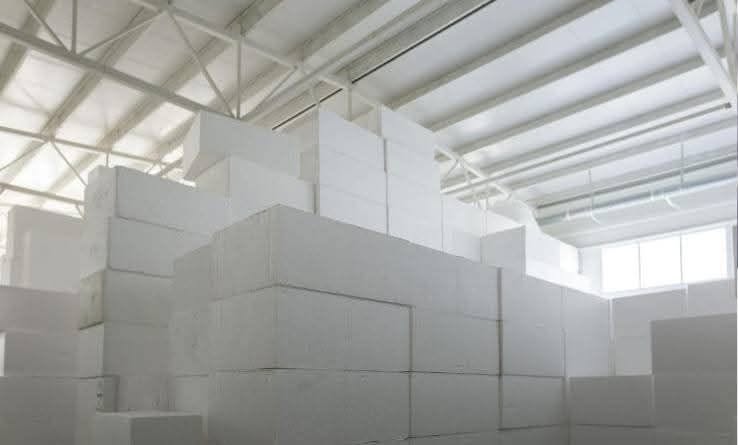

White EPS thermocol sheets stacked in warehouse at Insulation System Lahore
White EPS thermocol sheets stacked in warehouse at Insulation System Lahore

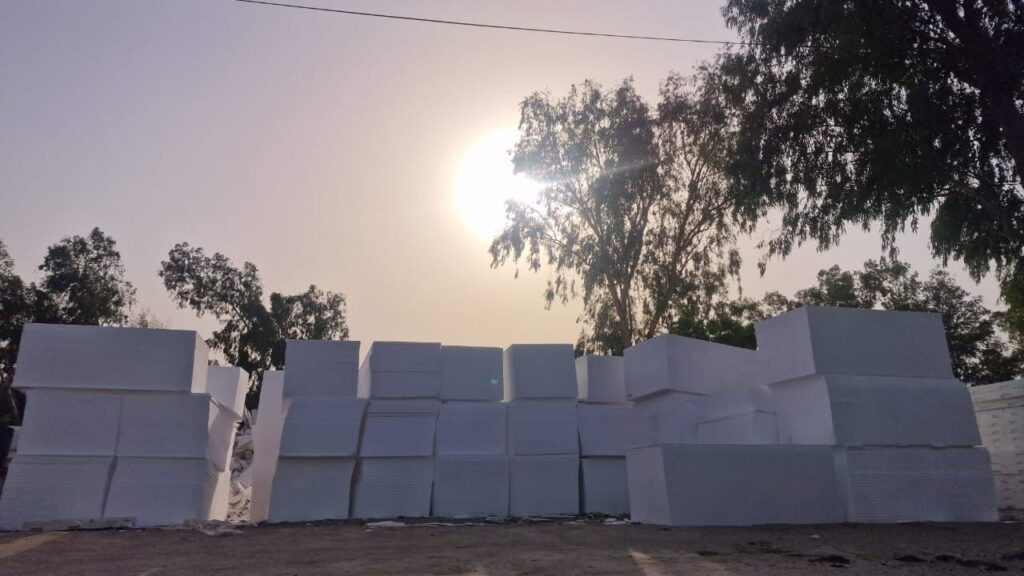

Stack of white EPS thermocol blocks at sunset in Insulation System stock yard
Stack of white EPS thermocol blocks at sunset in Insulation System stock yard

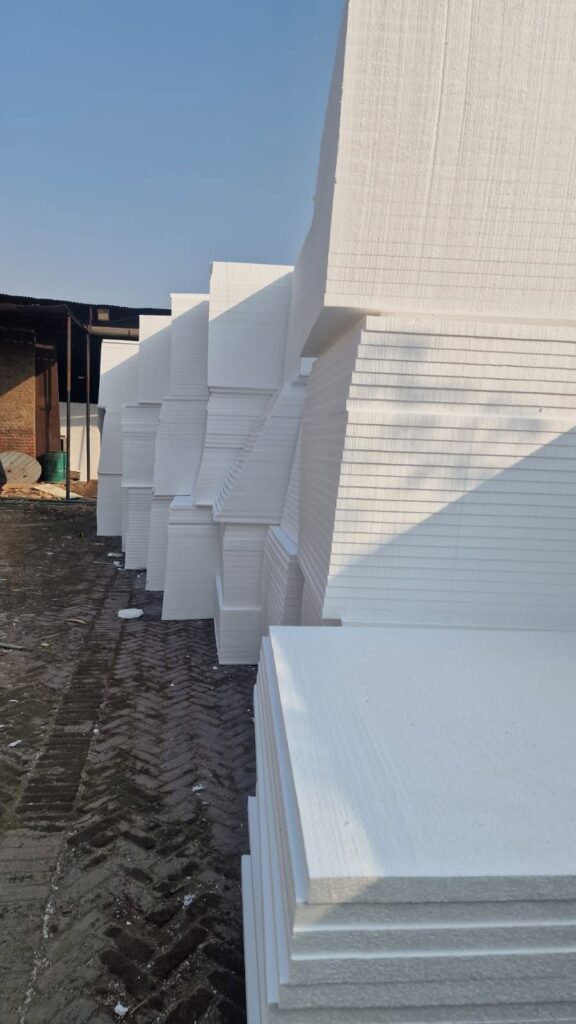

White EPS insulation sheets stacked vertically at storage yard
